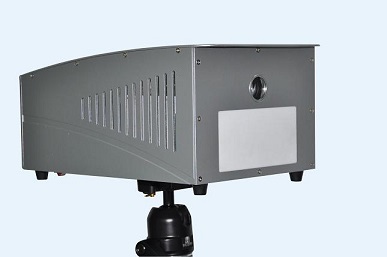

OriFire PT3.5 portable high-definition electronic police system has the following seven major functions:
1) It can be placed in a car as a mobile electronic police to use, also can be set up on a roadside as a fixed-point electronic police system to use , a truly multifunctional device.
2) The view area of the system is large enough, it can collect the speeding violation evidence for any vehicle (the car and the truck etc) on the road.
3）It can monitor the speeding violation with double direction, also can monitor the behave with single direction, such as the approach or recede.
4) The snap pictures of illegal vehicles auto-related the information of violation of the vehicle, such as violation time, location, limit speed of the road, measured speed of the vehicle, and the proportion of speeding.
5) Snap at night, you can also snap into a clear picture of the goal of speeding.
6) Combined with the Road Traffic Safety Law, the law code can be generated with detailed information on illegal notice, so that make the evidence accurate and convincing, also can inquire it at your free, and print it out.
7) The illegal information of the goal can be downloaded on-site with mobile storage devices, and can also be equipped with the appropriate network modules for network transmission, you can remote browsing, downloading. Support for CDMA, GPRS, and wireless transmission bridge.
OriFire PT3.5 portable high-definition electronic police system has the following twelve great performance features:
1) The system is wireless design, with no one cable, create a wireless era of the mobile electronic police system.
2) The system integrated most of the advantages of similar products on the market today from the design. Ultra-small, portable design can be set on any vehicle, and on the installing scene do no damage to the vehicle, zero-installation—no needs to drill or to cut etc.
3) The clever design allows the system leave the law enforcement car as a fixed-point electronic police system to use, supporting on side of the road to get violation evidence automatically.
4) Integration design, make the system using very simple. Set it up on the roadside, inputting the limit speed of the road ok, point it to the area wanting to shot, the system can snap the over speed target automatically, not needs any adjustment.
5) Using the narrow wave beam planar radar and high pixels camera, make the snapping position of the target very accurately and the picture very clearly.
6) The power consumption is very small, is half of the other products.
7) Intelligent lithium battery pack supply the power for the system, preventing over charge and over discharge.
8) The advanced technology of determine the direction of the goal of the radar, you can filter on the vehicles, only to snap one-way car, significantly reduced the rate of false pictures.
9) High-performance signal processing technology improves the radar gun accuracy, up to 0.1 km / hour.
10) Large data storage capacity can store photos up to 1,000,000 pieces.
11) The software interface is user-friendly, powerful, very simple operation can be started within 10 minutes.
12) With an one key recovery system, when the system collapses, it can automatically restore within 10 minutes.
l Working frequency： f0 = 24.125 GHz
l Transmitting power： ≤10mW
l 3 dB beam width： 7°×25°
l Measuring accuracy： ±1km/h
l Measuring range： 2 ～ 300 km/h
l Farthest distance shooting： ≤50m
l System response time： ≤100ms
l The frames of clear capturing image 2 Frames
l The frame size of capturing image 1600×1200 Pixels
l The most low-light： 0.1Lux
l Aperture size: Automatic adjustment
l The rate of false shooting： <5%
l The rate of miss shooting： <5%
l Working environment： -20℃ ～ +60℃
